Code catalogue of M12 connectors--Westsam Technology

Today, we introduce the internal structure of Westsam‘s various coding plugs in the form of internal structure diagrams, so that you can quickly compare and select your own needs.

M12 plug

There are up to 11 different coding structures in the M12 plug: A code, B code, D code, L code, T code, C code, X code, K code, S code, Y code, US code.

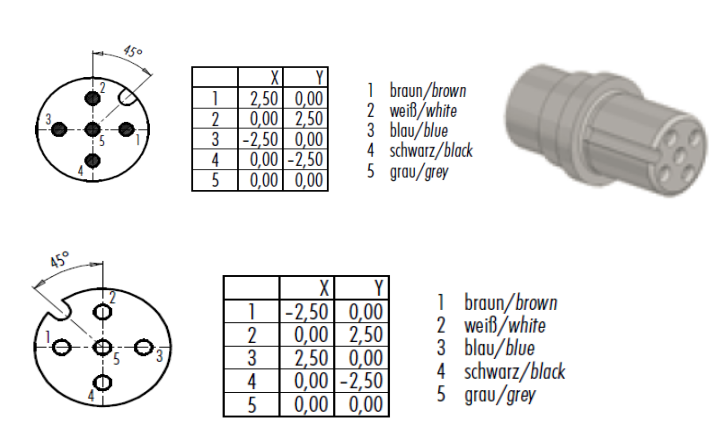

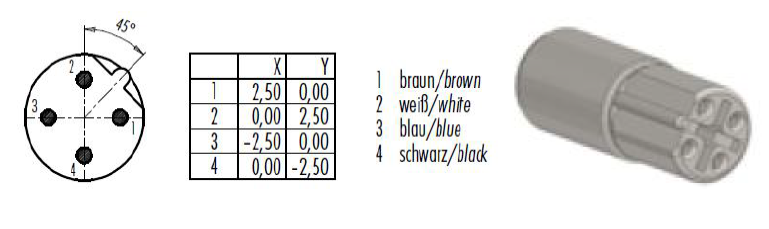

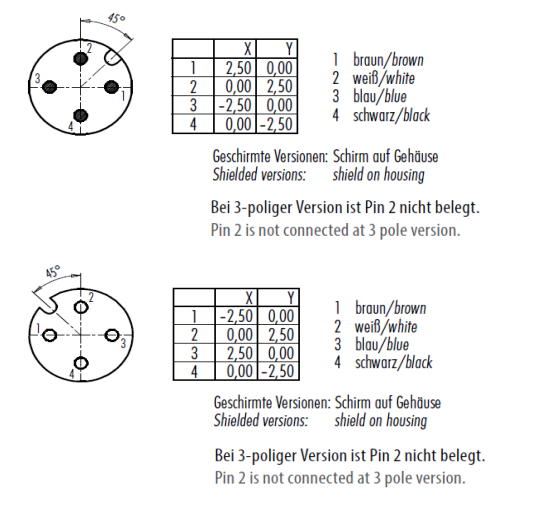

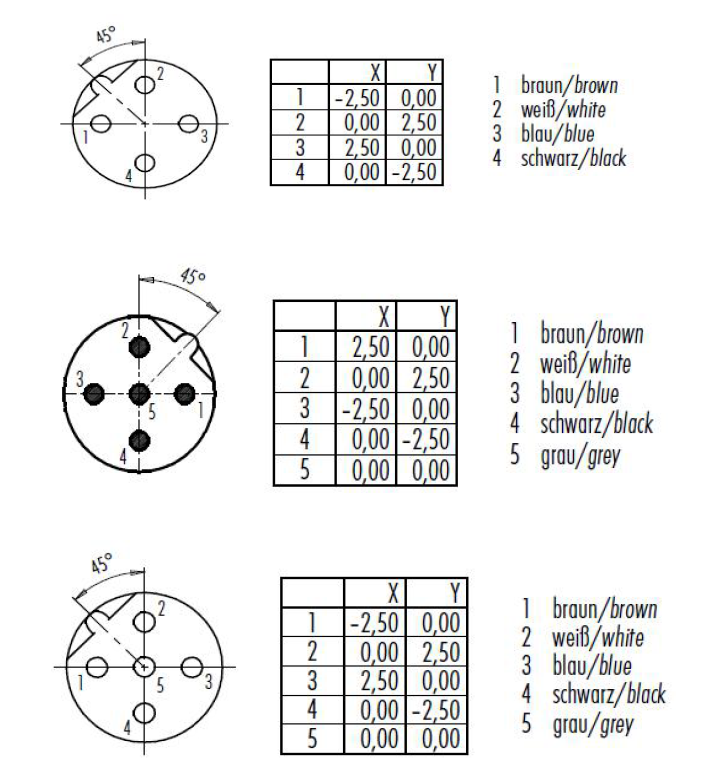

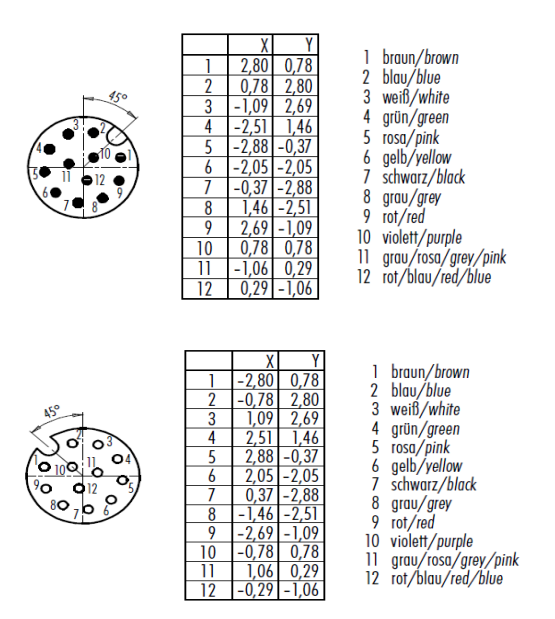

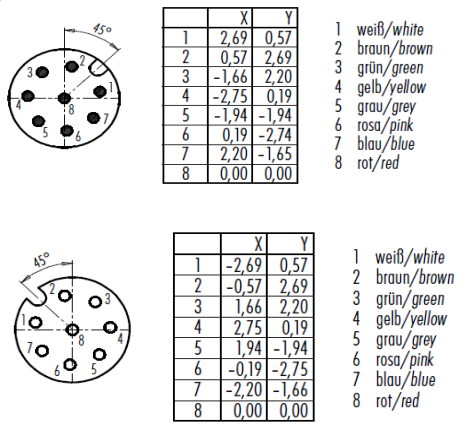

1. A code (3 pin, 4 pin, 5 pin, 8 pin, 12 pin)

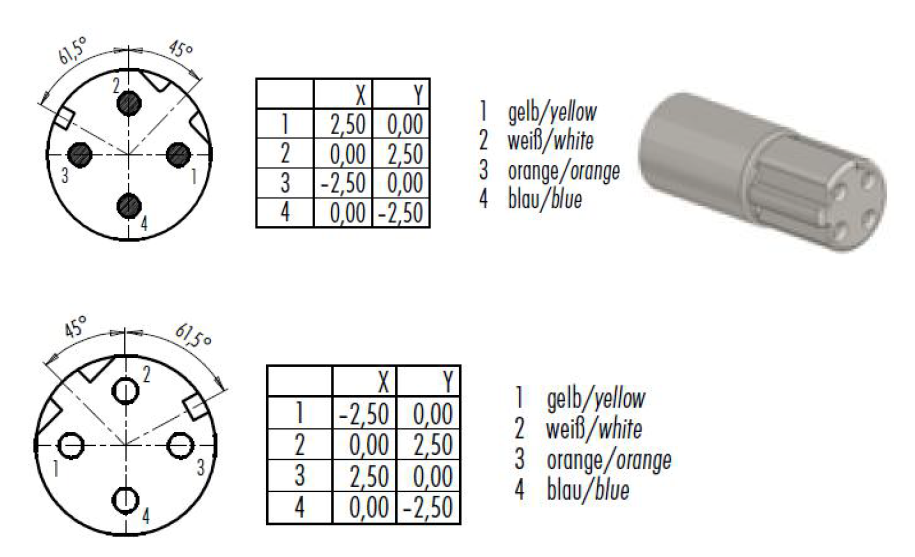

2. B code (4 pin, 5 pin)

3. D code(4pin)
